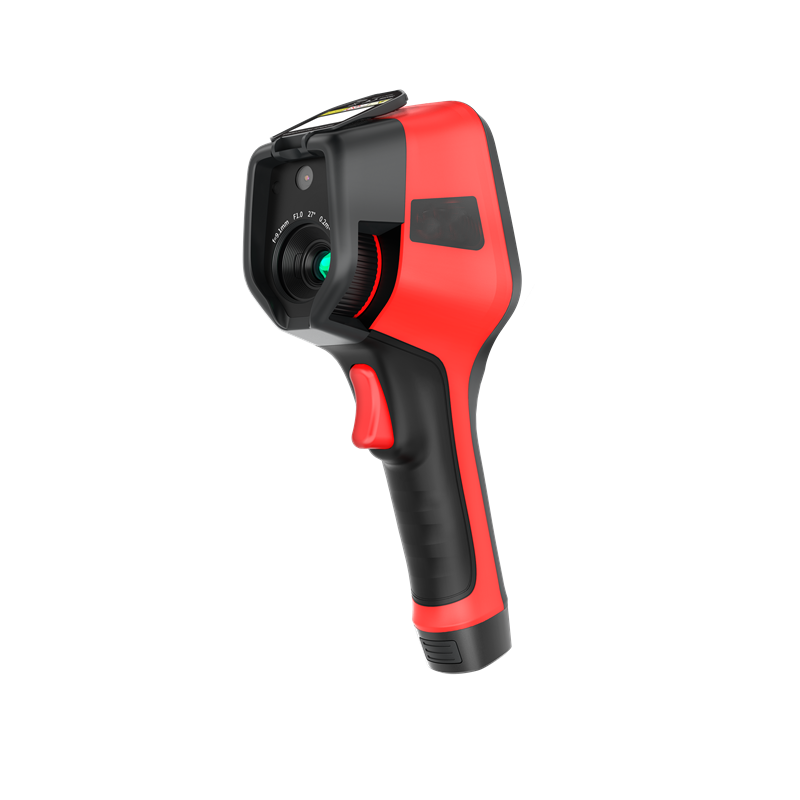

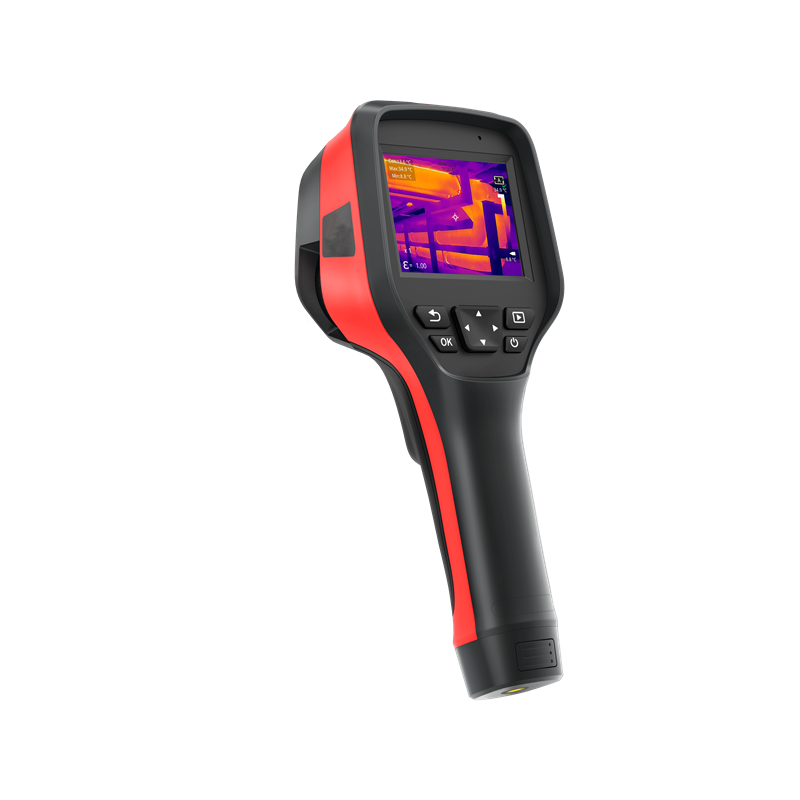

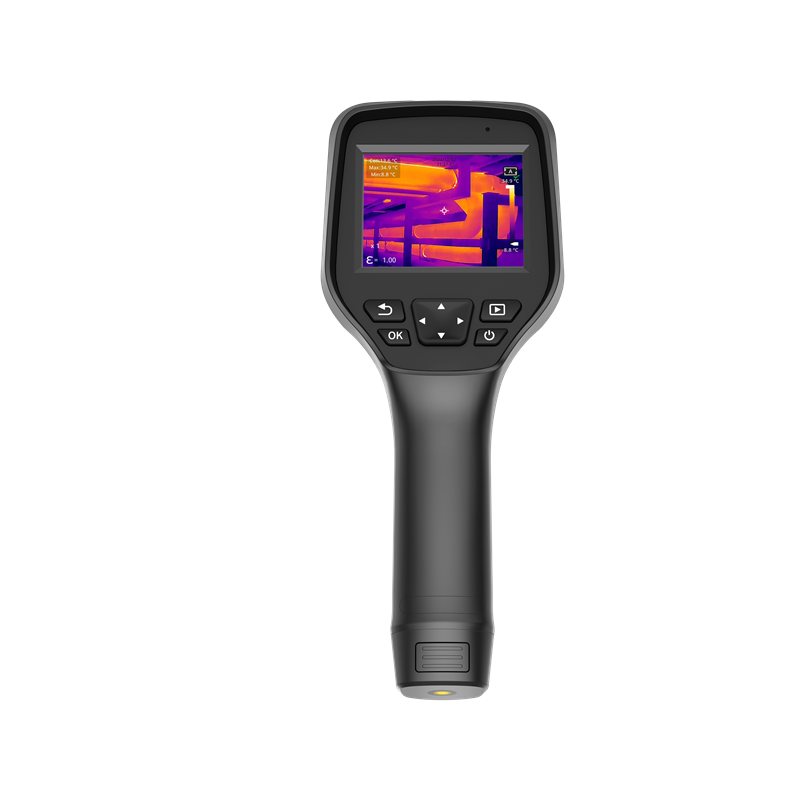

The Professional-Grade Handheld Infrared Thermal Imager is a high-resolution, manual-focus thermal imaging thermometer. It features self-developed 256×192 / 384×288 / 640×512 infrared cores and achieves a high sensitivity of 35 mK. It is widely applicable in fields such as power systems, electrical automation, building inspection, electronic circuit design, HVAC, industrial manufacturing, petrochemicals, and photovoltaic inspection.

Contact an Engineer Contact Us

High-Definition Thermal Images, Capturing Minute Hotspots

1. Equipped with self-developed 256×192/384×288/640×512 high-pixel detectors manufactured using advanced 12μm technology.
2. Capable of resolving temperature differences as small as 0.035°C, with an IFOV as low as 0.63 mrad, effortlessly capturing minute hotspots.

Smart Upgrades, Simplifying Complexity

1. Supports intelligent shooting, user customization, and importing/assigning inspection task packages to streamline workflows and enhance inspection efficiency.
2. Supports temperature trend analysis, enabling users to observe temperature distribution and changes in real time.
3. Supports isotherm functionality to highlight temperature ranges or areas of concern.
4. Compatible with PC analysis software for secondary analysis of video files.

Performance Upgrades, Adapting to More Scenarios

1.Broader temperature measurement ranges: -20℃ to +550℃ / -20℃ to +650℃, suitable for more industrial temperature measurement scenarios.

2. IP54 protection rating, 2m drop resistance, ensuring robust and durable performance.
3. Includes a standard 32GB Micro SD card, expandable up to 512GB, supporting temperature video recording.

Infrared Resolution: 256×192 / 384×288 / 640×512

Pixel Pitch: 12 μm

Thermal Sensitivity (NETD): <35 mK (25°C, F1.0)

Frame Rate: 25 Hz / 30 Hz

Field of View (FOV): 27°×20°

Spatial Resolution (IFOV): 1.31 mrad

Focusing Method: Manual focus

Temperature Measurement Range:
–20 ℃ to +150 ℃; 100 ℃ to 550 ℃ / –20 ℃ to +150 ℃; 100 ℃ to 650 ℃

Display: 3.5inch touchscreen, resolution 640×480

Visible Light Camera: 5megapixel

Digital Zoom: 1×, 2×, 4×, 8×

OnDevice Analysis Functions:
Custom point/line/area temperature measurement; supports up to 10 points, 10 areas, 10 lines;
Center point/hottest/coldest spot tracking with temperature display

Supporting Software: PC (Infrared Analysis Software) or Mobile (iOS/Android App)

Weight & Dimensions: Approx. 670 g, 258.4 × 105.1 × 102.3 mm

Certifications: CE, RoHS, Metrology Certification, etc.
