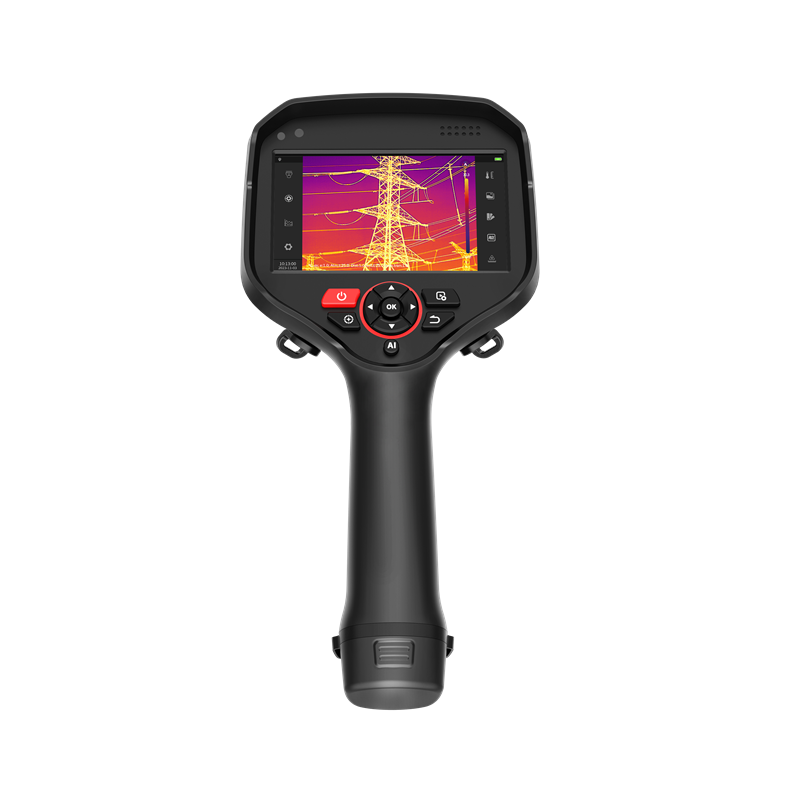

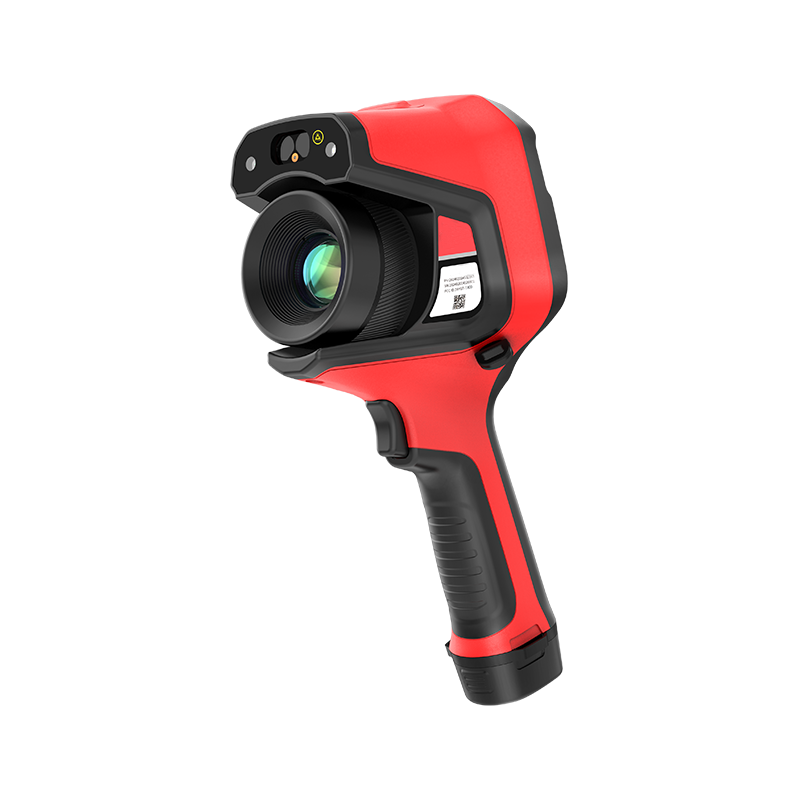

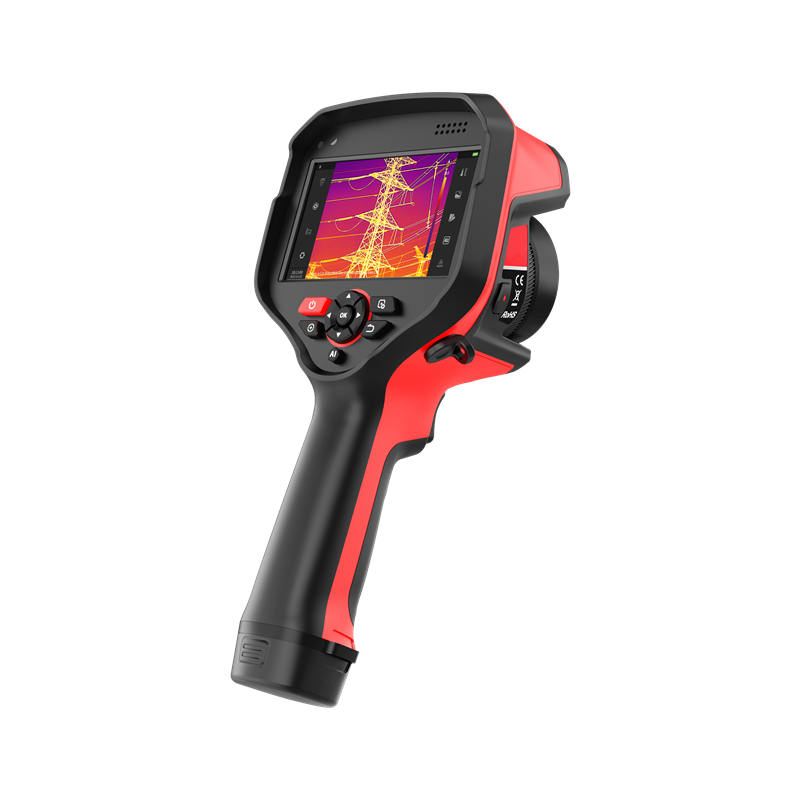

Handheld thermal camera RT

Handheld thermal camera RT

Handheld thermal camera RT

Handheld thermal camera RT

Handheld thermal camera RT

Professional-grade handheld infrared thermal imager, equipped with a next-generation 384×288/640×512 high-resolution detector with NETD as low as 35mK, captures finer hot spots and delivers sharper, cleaner thermal images. Packed with powerful features including Android OS, trend analysis, area measurement, and cloud connectivity, it is a new powerhouse tool born for expert-level all-scenario analysis!

Contact an Engineer Contact Us

Clear thermal imaging and accurate temperature measurement

1. Equipped with a 12μm uncooled infrared detector, with a resolution of 384×288/640×512, supporting 4× super resolution.
2. NETD as low as 35mK, with temperature measurement accuracy of ±2℃ or ±2% of the reading (whichever is greater).

Rich lens options and fast focusing

1. Standard 25° lens, with optional wide-angle, telephoto, and super-telephoto lenses.
2. Supports macro lenses for flexible adaptation to various scenarios.

Upgraded functions to improve efficiency

1. Android operating system for more convenient operation.
2. Supports intelligent image stabilization for more stable temperature measurement imaging.
3. Supports laser distance measurement and area measurement.
4. Supports up to 20 points/lines/regions for analyzing more temperature details in the image.

• Infrared Resolution: 384×288/640×512
• Super Resolution: 1280×1024
• Pixel Size: 12μm
• Thermal Sensitivity (NETD): <35mK (25°C, F1.0)
• Frame Rate: 25Hz
• Lens Focal Length:Standard Lens: 17.7mm; Super Telephoto Lens: 60.9mm; Telephoto Lens: 31.5mm; Wide-Angle Lens: 9.5mm; Macro Lens (0.2×): 13mm; Super Macro Lens (0.4×): 14.8mm
• Focusing Methods: Manual focus, one-touch center focus, auto center focus, single-touch auto focus, laser-assisted focus, motorized fine-tuning
• Minimum Imaging Distance:Standard Lens: 0.6m; Super Telephoto Lens: 4m; Telephoto Lens: 3m; Wide-Angle Lens: 1m; Macro Lens: 39mm; Super Macro Lens: 19mm
• Temperature Measurement Range: -20℃ to +150℃, 100℃ to 650℃; Optional: 400℃ to 1500℃
• Temperature Measurement Accuracy: ±2℃ or ±2% of the reading, whichever is greater
• Display: 5-inch OLED touchscreen, resolution 1280×720
• Visible Light Camera: 13 megapixels
• Digital Zoom: 1-10×
• On-device Analysis Features: Supports movable points, lines, rectangles, circles, polygons, up to 20 in total; Supports up to 5 preset modes
• Supporting Software: PC software (infrared analysis software) or mobile app (iOS/Android)
• Laser Distance Measurement: Supported
• Area Measurement: Supported
• Dual-light Video Recording: Supports simultaneous visible light and infrared video recording in MP4 format
• Weight and Dimensions: Approximately 1.3kg (including battery), 144×129×307mm (subject to actual product)
• Protection Rating: IP54
• Certifications: CE/RoHS/Measurement Certification, etc.
