High-power programmable DC power supply

6000W Programmable DC Switching Power Supply

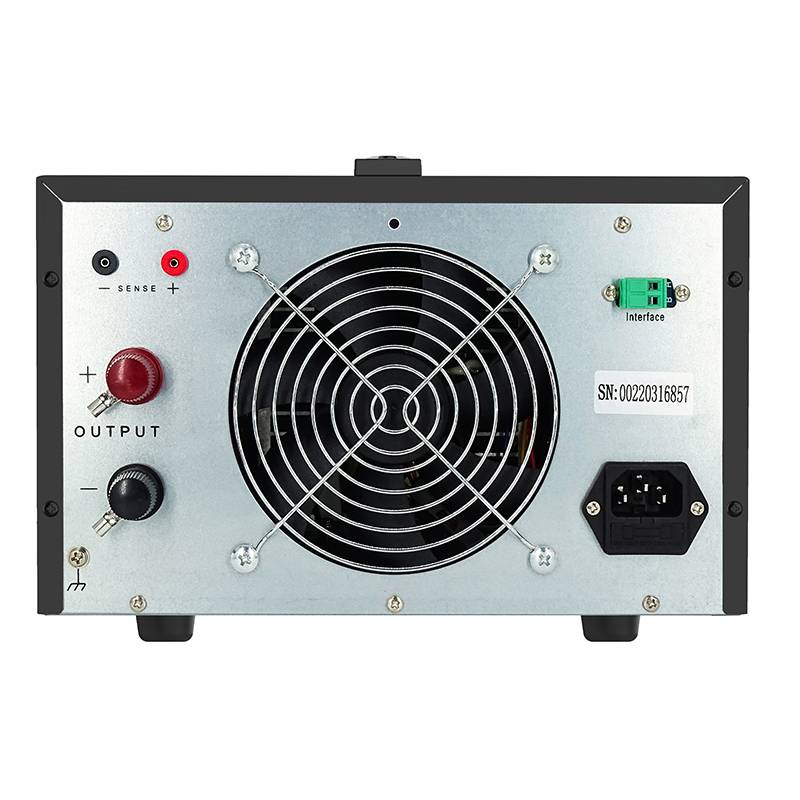

This high-power programmable switching power supply comes standard with an RS485 serial communication interface, supporting the MODBUS RTU protocol. It features built-in remote sensing compensation for more precise measurement and provides a resolution of 10mV/10mA. Both output voltage and current can be preset, while overvoltage protection (OVP) and overcurrent protection (OCP) thresholds can be set freely from 0 to the maximum rated value.

With six groups of data storage and recall functions, combined with the “LIST” mode and timer delay feature, users can set six different voltage and current output profiles with adjustable intervals, enabling true online programming capability. The unit also offers comprehensive protection against short circuits, overvoltage, overcurrent, overpower, and reverse polarity.

Featuring high output efficiency and a convenient onebutton on/off output control for safe operation, this power supply is widely used in applications such as product aging and maintenance, battery charging, laboratory testing, production testing, electroplating, and electrolysis industries.

Contact an Engineer Contact Us

Customizable current and voltage values are supported, with a maximum output of up to 6000W.

Model	Voltage	Current	Resolution	Accuracy
1005PC	0~100V	0~5A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
1560PC	0~15V	0~60A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
2050PC	0~20V	0~50A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
3015PC	0~30V	0~15A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A

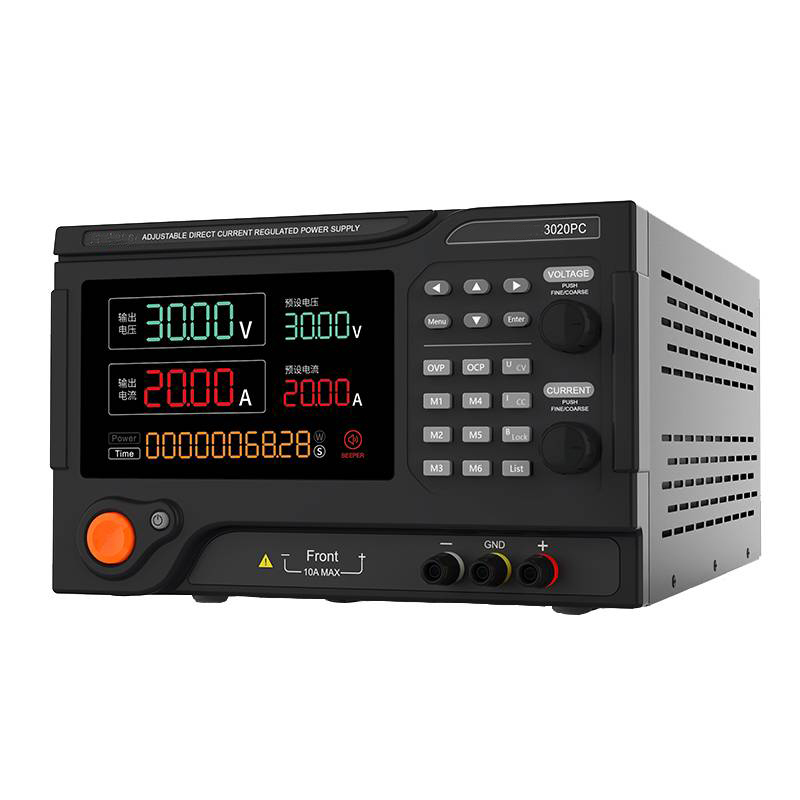

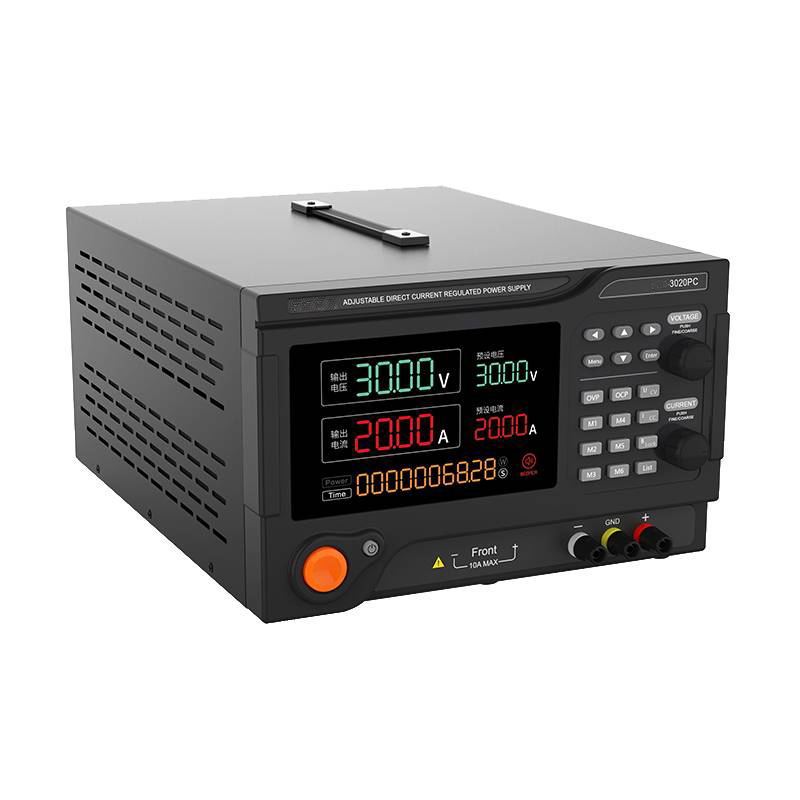

3020PC	0~30V	0~20A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
3030PC	0~30V	0~30A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
3050PC	0~30V	0~50A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
3060PC	0~30V	0~60A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
3080PC	0~30V	0~80A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
-5020PC	0~50V	0~20A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
5030PC	0~50V	0~30A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
5050PC	0~50V	0~50A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
5060PC	0~50V	0~60A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
6010PC	0~60V	0~10A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
6015PC	0~60V	0~15A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
6020PC	0~60V	0~20A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
6030PC	0~60V	0~30A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
6050PC	0~60V	0~50A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
6060PC	0~60V	0~60A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
8030PC	0~80V	0~30A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
10010PC	0~100V	0~10A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
10020PC	0~120V	0~20A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
12030PC	0~120V	0~30A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
30100PC	0~30V	0~100A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
30200PC	0~30V	0~200A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
1505PC	0~150V	0~5A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
2002PC	0~200V	0~2A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
2003PC	0~200V	0~3A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
2005PC	0~200V	0~5A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
3002PC	0~300V	0~2A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
3003PC	0~300V	0~3A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
3005PC	0~300V	0~5A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
4002PC	0~400V	0~2A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
4003PC	0~400V	0~3A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
4005PC	0~400V	0~5A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
5005PC	0~500V	0~5A	<100V:10m ≥100V:100mV;<100A:10mA/≥100A:100mA	0.1V;0.1A
