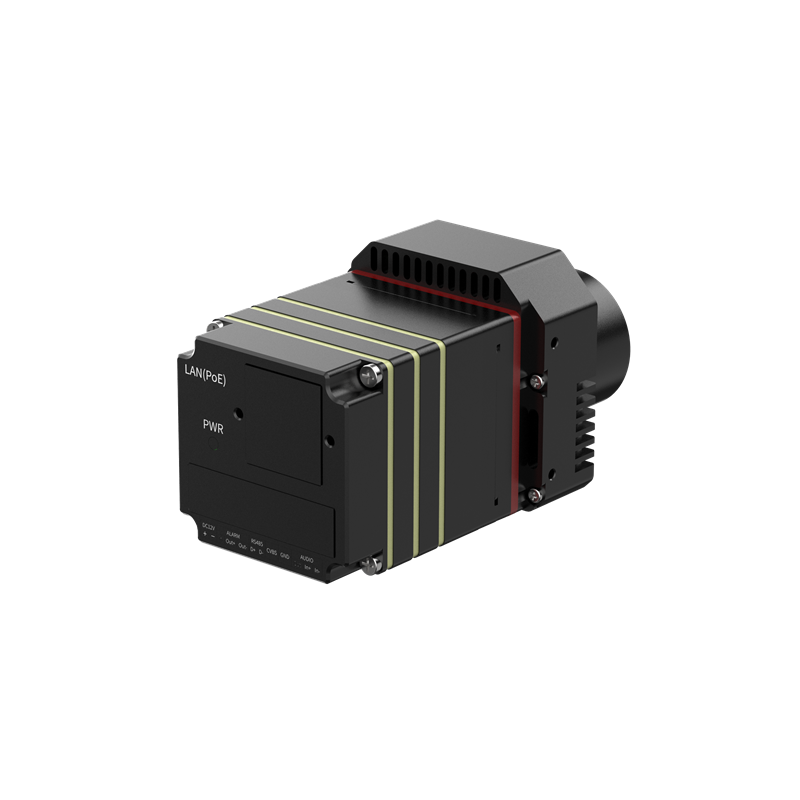

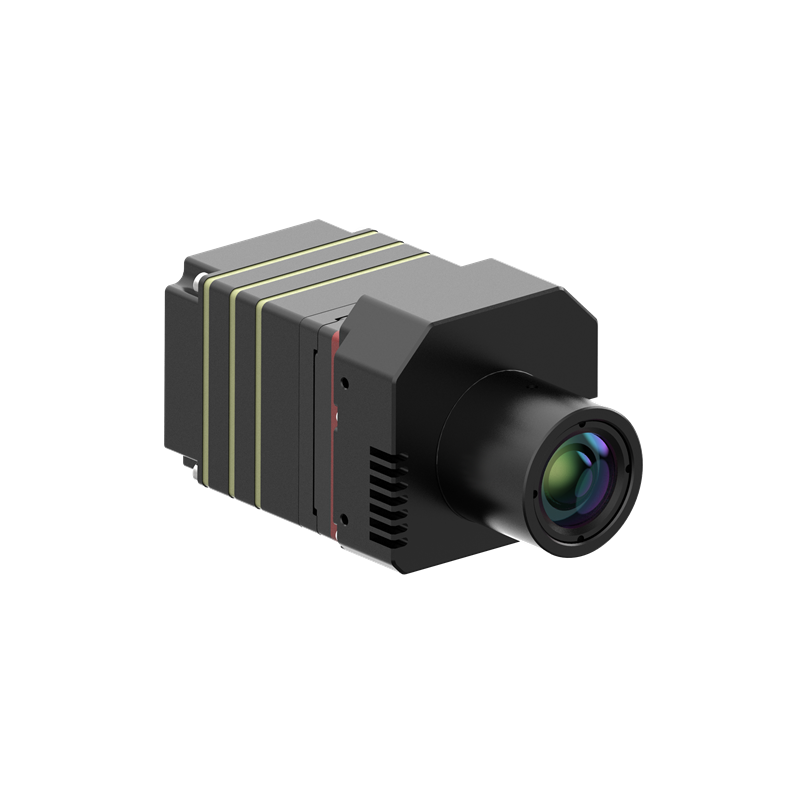

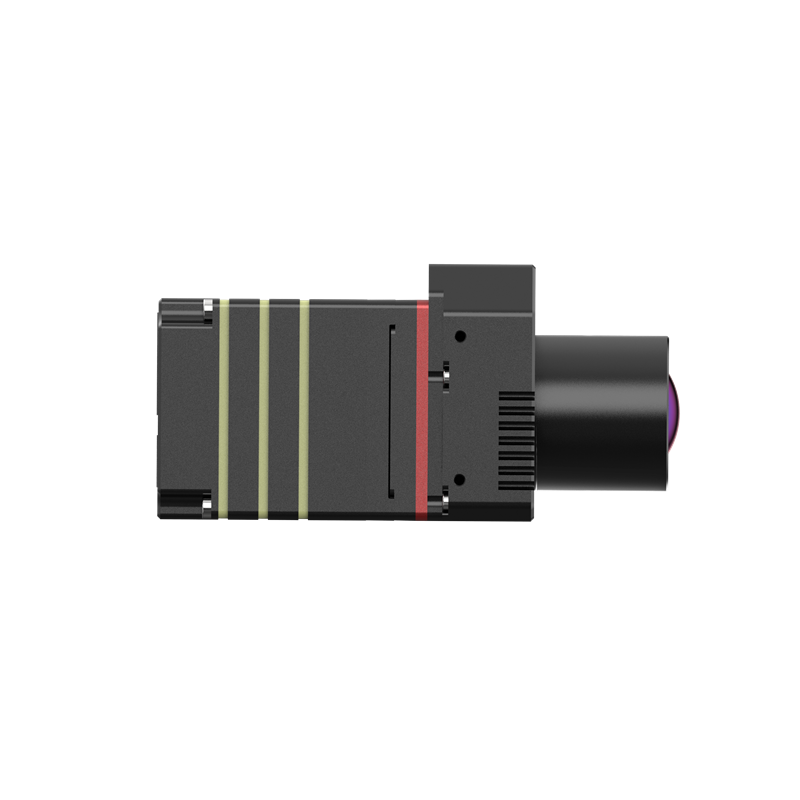

The online temperature measurement thermal imager is a high-performance, high-precision network-enabled thermal imaging device. It utilizes an uncooled infrared focal plane detector and offers multiple lens options, delivering clear and accurate infrared images and temperature measurement capabilities. Supporting multiple communication protocols such as Modbus TCP, ONVIF, and GB28181, it comes with professional infrared temperature analysis software and an SDK. Compact in size and low in power consumption, it is ideal for system integration in applications such as machine vision, power systems, rail transit, and industrial automation.
Product Features：
High-Quality Image Output
- Capable of outputting high-resolution infrared images at 384×288/640×512, providing clear and detailed thermal maps for temperature data analysis and interpretation.
High Frame Rate and Real-Time Data Transmission
- Features a frame rate of up to 50Hz/25Hz, enabling the capture of rapid temperature changes, making it highly suitable for scenarios requiring real-time temperature monitoring.
- Simultaneously outputs temperature data, facilitating secondary analysis by engineers based on on-site conditions.
Wide Temperature Measurement Range and Multiple Lens Options
- Offers a broad temperature measurement range from -20°C to +650°C, suitable for various industrial applications with diverse temperature requirements.
- Utilizes a temperature compensation algorithm to mitigate the impact of environmental factors on temperature measurements, ensuring accuracy and reliability of the results.
Technical Specifications:
- Infrared Resolution:384×288 / 640×512
- Pixel Pitch:12μm
- Spectral Range:5μm to 14μm
- Thermal Sensitivity (NETD):≤40mK
- Temperature Measurement Range:-20℃ to +150℃, 0℃ to 650℃
- Temperature Accuracy:±2℃ or ±2% of reading (whichever is greater)
- Temperature Correction Parameters:Reflected temperature, ambient temperature, atmospheric transmittance, object emissivity, distance
- Temperature Measurement Tools:12-point measurement, 12-line measurement, 12-area measurement; supports isotherm settings
- Temperature Span Stretch:Supported
- Frame Rate:50Hz / 235Hz
- Color Palettes:20 options including black hot, white hot, iron red, rainbow, etc.
- Video Standards:264, H.265
- Thermal Image Capture:Supports capture for secondary analysis
- Digital Zoom:0× to 8.0× continuous zoom (0.1× step size)
- Communication Interfaces:
RJ45, 10M/100M adaptive Ethernet port
1× RS485 (supports Pelco-D protocol expansion)
- Audio Interfaces:1× audio input, 1× audio output
- Video Interface:1× analog video output
- Alarm Interfaces:1× alarm input, 1× alarm output
- Storage Interface:Supports TF card
- Network Protocols:IPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP
- Interface Protocols:Modbus TCP, ONVIF, GB28181, MQTT
- Operating Temperature:-40℃ to +70℃
- Power Supply:9V-15V DC (PoE optional)
- Typical Power Consumption:4W
- Dimensions:45mm × 44mm × 60mm (excluding lens)
- Weight:Approximately 110g (excluding lens)
