Single phase Mulfunction power meter

This High Precision Power Meter is a versatile electrical parameter measuring instrument designed to accurately monitor U (voltage), I (current), P (active power), f (frequency), Q (reactive power), S (apparent power), and PF (power factor). This compact device provides real-time data on multiple electrical parameters, making it an invaluable tool for professionals in the electrical, industrial, and utility sectors. With its high precision sensors and advanced circuitry, you can rely on accurate readings for troubleshooting, load analysis, energy audits, and system optimization. The user-friendly interface and robust construction ensure reliable performance in various environments. Equip yourself with this comprehensive power meter to gain valuable insights into your electrical systems.

Features:
  1. High Precision & Full Monitoring: 1%basic accuracy; Real-time tracking of voltage, current, active/reactive/apparent power, frequency, and power factor
  2. Professional & Versatile Use: Designed for troubleshooting, load analysis, and energy audits; Ideal for engineers, electricians, facility managers, and advanced homeowners.
  3. Wide Range & Auto-Ranging: Measures 6–600V and 0.05mA–40A; Auto-ranging prevents errors and simplifies use.
  4. Durable & Easy to Use: Rugged construction with clear four-window LED display; RS232/RS485 for PC/SCADA connectivity and data logging.
  5. Reliable Performance: 8000 samples/sec with 120% overload tolerance for accurate data
Parameters:
Model 8710C 8718C
Measurement parameters Voltage (U), Current (I), Frequency (f), Active Power (P), Reactive Power (Q), Apparent Power (S), Power Factor (PF) Voltage (U), Current (I), Frequency (f), Active Power (P), Reactive Power (Q), Apparent Power (S), Power Factor (PF), Integration (Power & Current), etc.
Energy Accumulation No Yes
Harmonic Measurement No Yes
Working power supply AC100V~265V,50/60Hz
Input unit single-phase
Basic accuracy 0.1%, ± (reading 0.1%+range 0.1%)
Measure bandwidth DC & AC (45Hz-65Hz)
Input range voltage 6-600V
Input Current 0.05mA-0.1A-40A (automatic range switching)
Permitted Overload 120% of the voltage and current range
Sample Rate 8000 times per second (24 bit voltage, current sampled simultaneously)

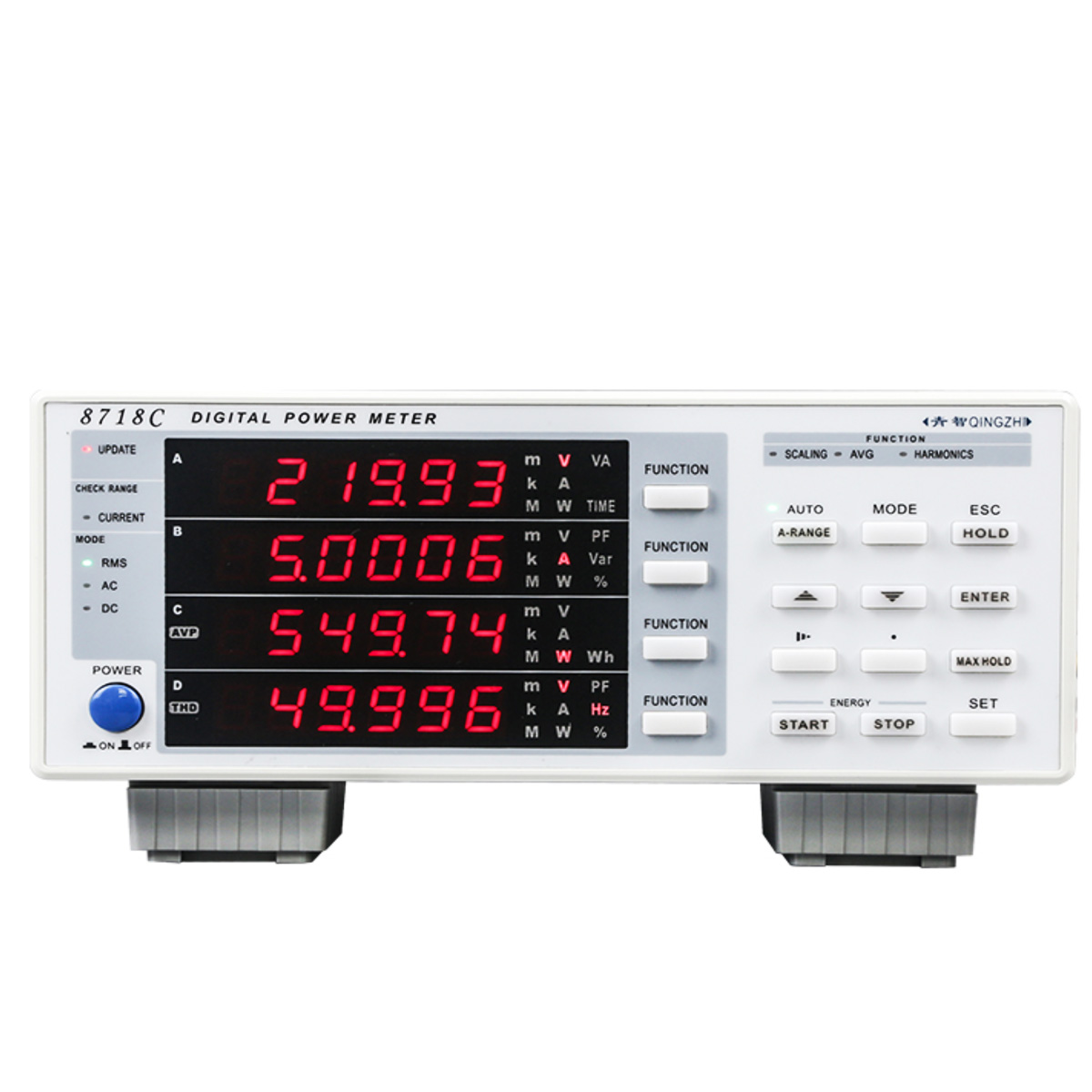

Display Four windows LED display
Power Consumption <10VA

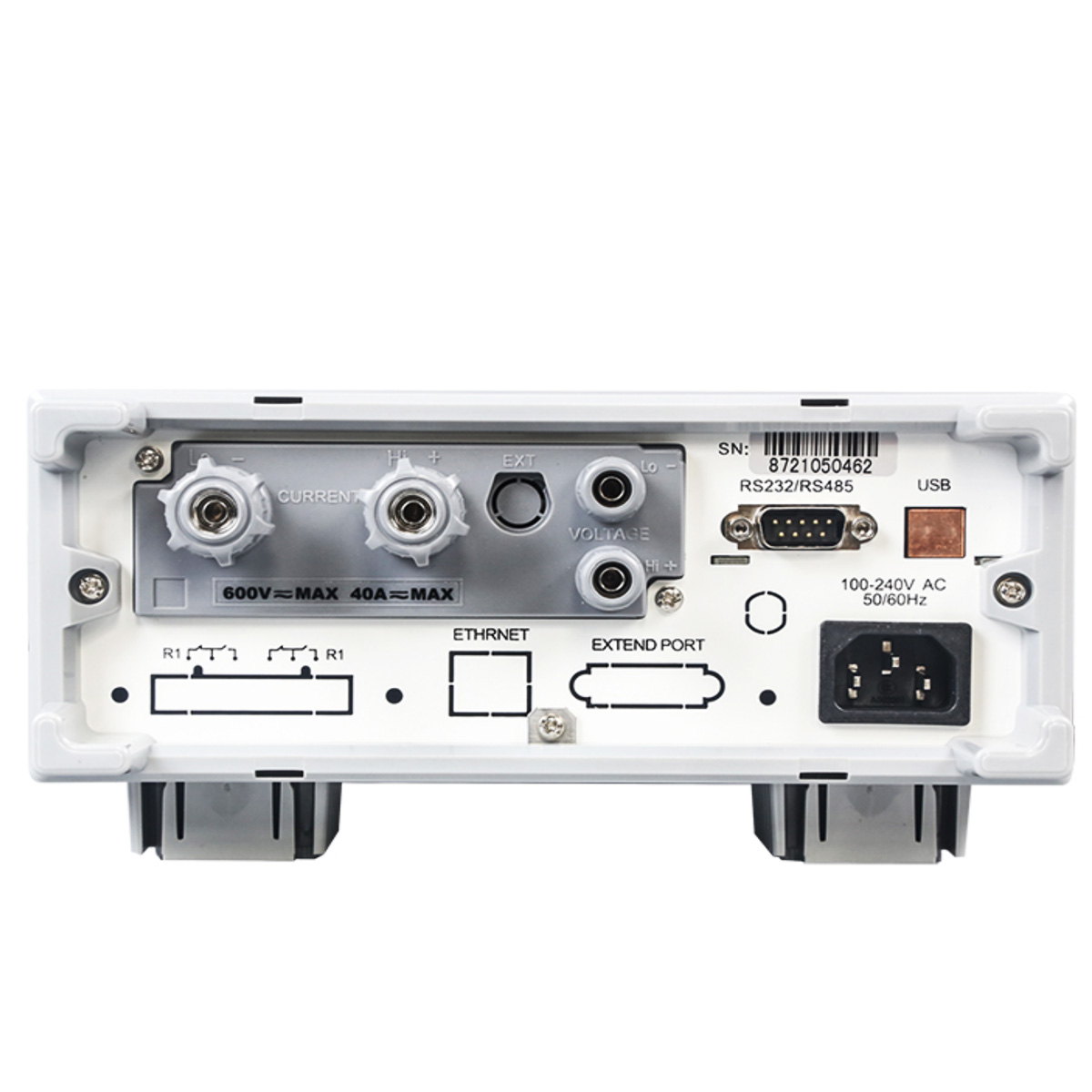

Interface RS232/RS485
Working environment Temperature (0-40) ℃; Humidity (20%~75%) RH; Atmospheric pressure (86-106) kPa
Weight About 2.8Kg
