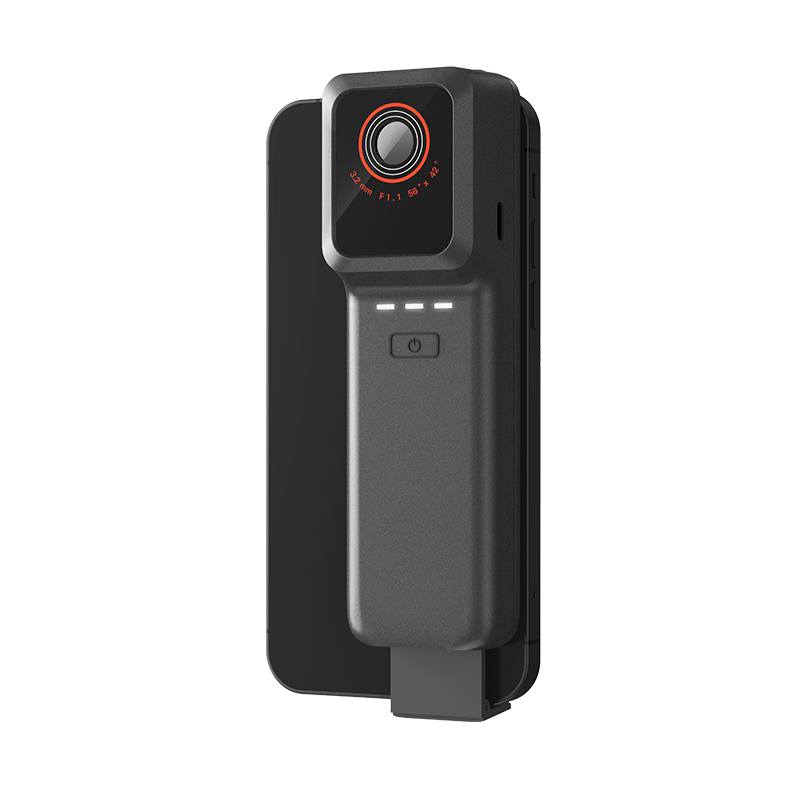

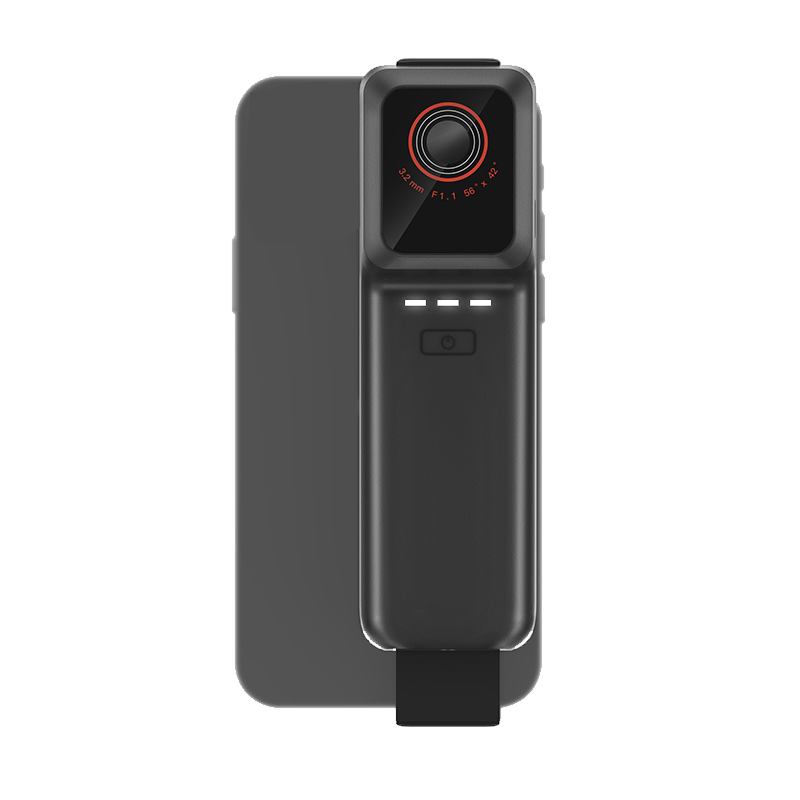

Wireless smartphone thermal imager, equipped with a high-sensitivity 256 × 192 resolution infrared detector. It can be freely used either attached to or detached from a smartphone depending on the scenario, supports wireless image transmission and operation, and comes with a companion app that enables real-time analysis, transmission, and other functions. It is widely applicable in fields such as electrical inspection, equipment maintenance, and HVAC leak detection.
Product Features:
Wireless Measurement, Unlocking New Scenarios
1.Wireless image transmission
- Image transmission latency below 300 ms
- 2-hour battery life, keeping productivity always online
Clear Thermal Images, Accurate Temperature Measurement
- Equipped with a 256 × 192 infrared detector using 12 μm technology—compact size, low power consumption
- 40 mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range, up to 550°C
- 7 color palettes, suitable for temperature observation of different targets and scenarios
Robust Configuration, Easy and Convenient to Use
- IP54-rated waterproof and dustproof, 2 m drop resistance, ergonomic thin and lightweight design, weighing only 130 g
- Bluetooth-assisted Wi-Fi connection for faster setup; OTA upgrades easily performed via the smartphone app
Professional app supporting real-time analysis of temperature measurement images
Technical Specifications:
Detector Type: 12 μm uncooled infrared detector
Infrared Resolution: 256 × 192
Thermal Sensitivity (NETD): <40 mK (25°C, F1.0)
Frame Rate: 25 Hz
Lens Focal Length: 3.2 mm
Field of View (FOV): 56° × 42°
Spatial Resolution (IFOV): 3.75 mrad
Focusing Method: Fixed focus
Minimum Imaging Distance: 0.3 m
Temperature Measurement Range:
-20℃ to +150℃, 100℃ to 400℃ / -20℃ to +150℃, 100℃ to 550℃
Temperature Measurement Accuracy: ±2℃ or ±2% of reading (whichever is greater)
Color Palettes: 7 types
App Analysis Functions:
Center point / Max temperature / Min temperature, 1 preset analysis template
(Supports 3 custom points, 3 custom lines, 3 custom boxes)
